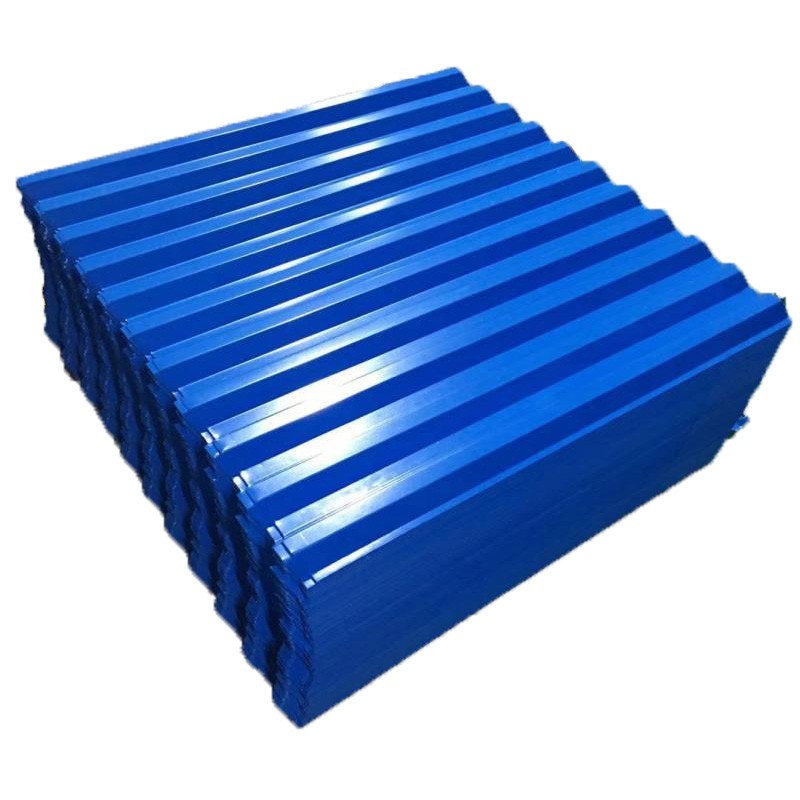

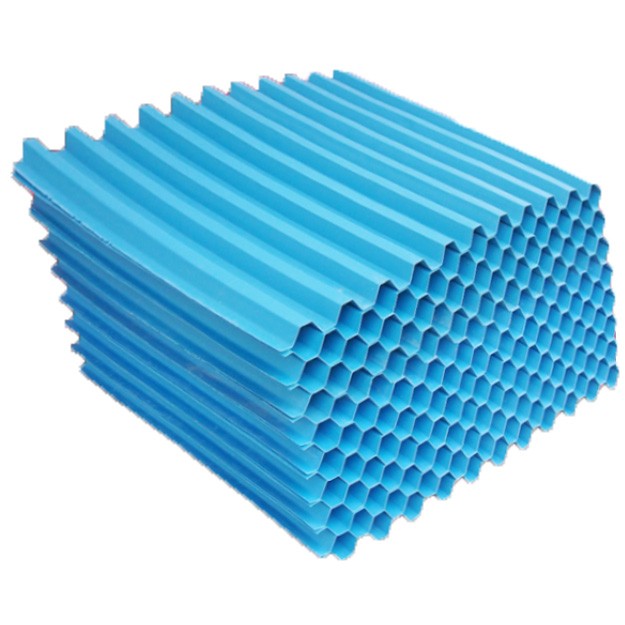

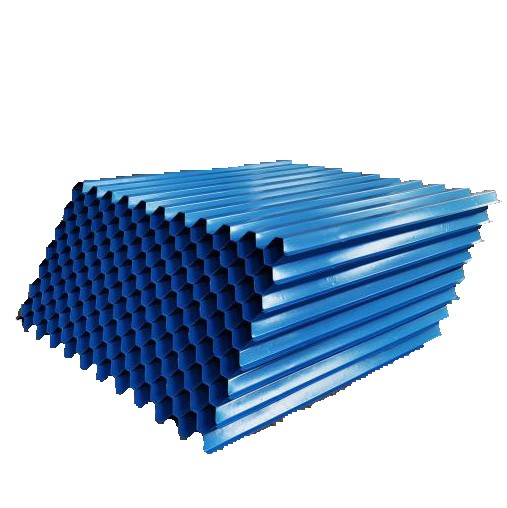

PVC inclined hexagonal honeycomb Lamella Clarifiers sheet tube settler
USD $30-$80 / m3
Delivery time:
| Quantity(m3) | 1 -200 | >200 |
| Est. Time(days) | 3 | To be negotiated |
Product description
Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area.
Tube settler systems are an inexpensive solution for drinking water and wastewater plants to increase treatment capacity, reduce new installation footprints, improve effluent water quality, and decrease operating costs.
Diameter (mm) | Thickness (mm) | Quantity (kg/m2) | Weight (kg/m2) | Specific surface area (m2/m3) |
25mm | 0.4 | 62 | 30 | 139 |
0.45 | 62 | 35 | 139 | |
35mm | 0.4 | 40 | 17-19 | 109 |
0.45 | 40 | 18-20 | 109 | |
0.5 | 40 | 20-21 | 109 | |
50mm | 0.4 | 30 | 16.5-17 | 87 |
0.45 | 30 | 17.5-18 | 87 | |
0.5 | 30 | 18.5-19 | 87 | |
0.6 | 30 | 22 | 87 | |
80mm | 0.7 | 20 | 19.5 | 50 |
0.8 | 20 | 22 | 50 |
1.Clarifiers equipped with tube settlers can operate at 2 to 4 times the normal rate of clarifiers/basins without tube settlers.
2.It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
3.Less filter backwashing equates to significant operating cost savings for both water and electricity.
4.New installations using tube settlers can be designed smaller because of increased flow capability.
5.Flow of existing water treatment plants can be increased through the addition of tube settlers.
6.Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.
Material | PVC,PP,FRP |
Unit | pc(sheet) |
Application | For water treatment |
Packing size | 1000×1000×866mm |
Sheet space | Φ25, φ35,φ50, φ80 |
Sheet thickness | 0.3-0.65mm |
Operating temperature | 60 degree C-35 degreeC |
Color | Black,white,blue |
Brand | Qinghui |
MOQ | 500pcs |
Packing details | In bundle,wooden pallet or as your requests. |
Supply ability | 100000 pieces/month |
Payment terms | T/T |
