EPDM bubble diffuser fine bubble tube diffused aeration for water treatment
US $2.00-$12.00 / Piece
Delivery time:
| Quantity(Pieces) | 1 – 1000 | >1000 |
| Est. Time(days) | 3 | To be negotiated |
Product description

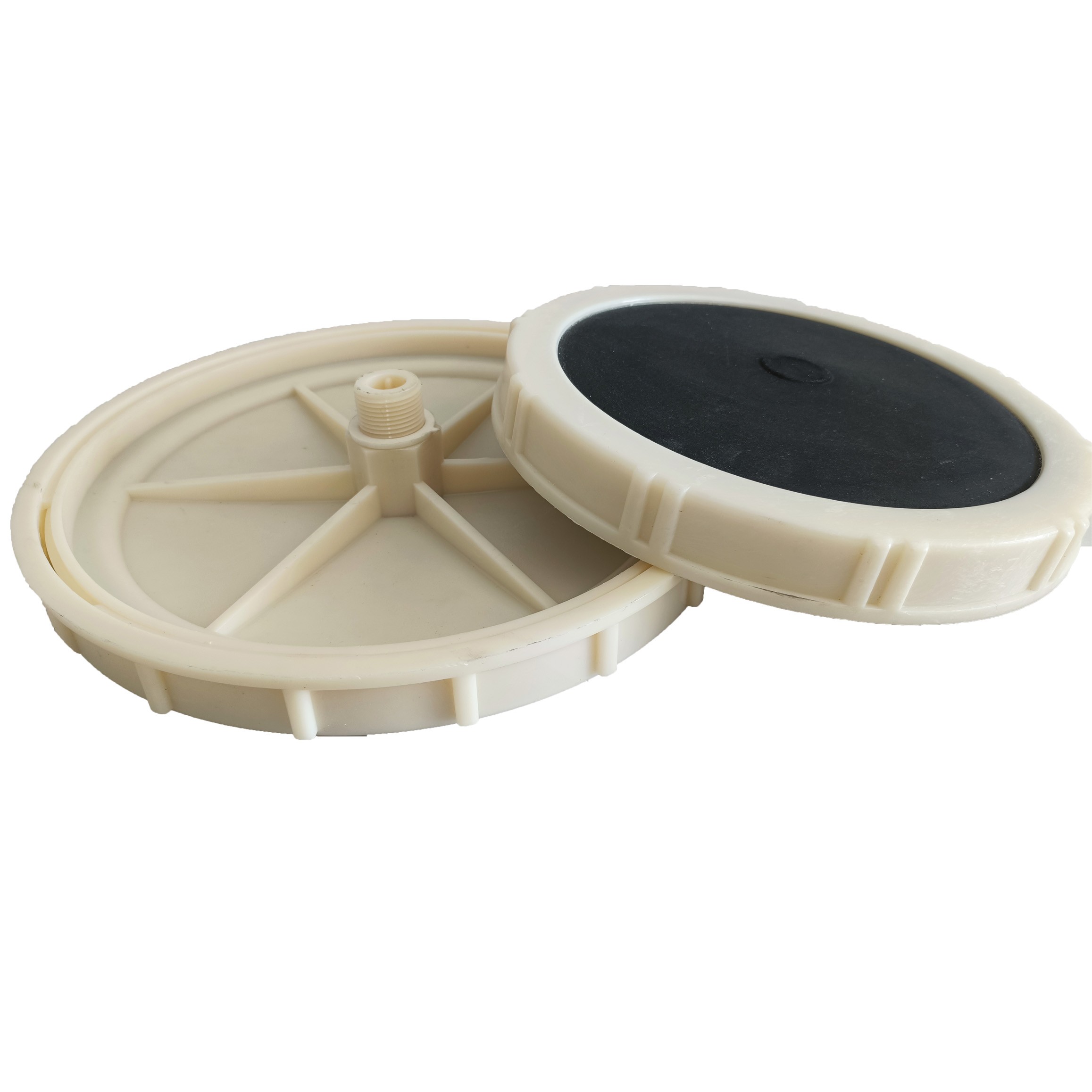

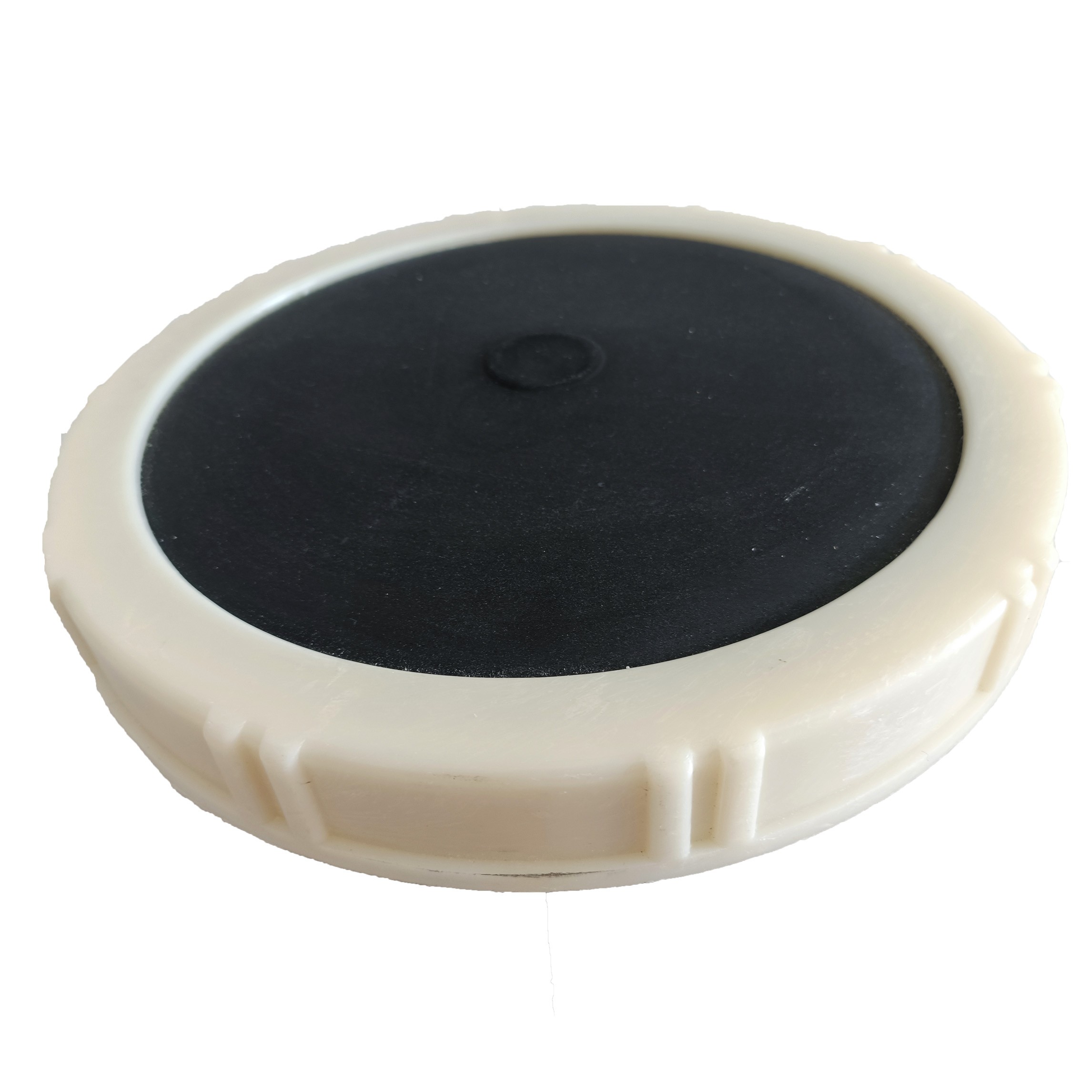

EPDM Membrane disc fine bubble air diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
Disc diffuser adopts energy saving design, low installation cost, high reliability and excellent performance in intermittent and continuous aeration process.
Dense drilling is conducive to efficient oxygen transfer and utilization, in order to apply the aeration system specifications, can use different drilling mode to adjust the working pressure, such as different slot length, distance, the density of drilling.

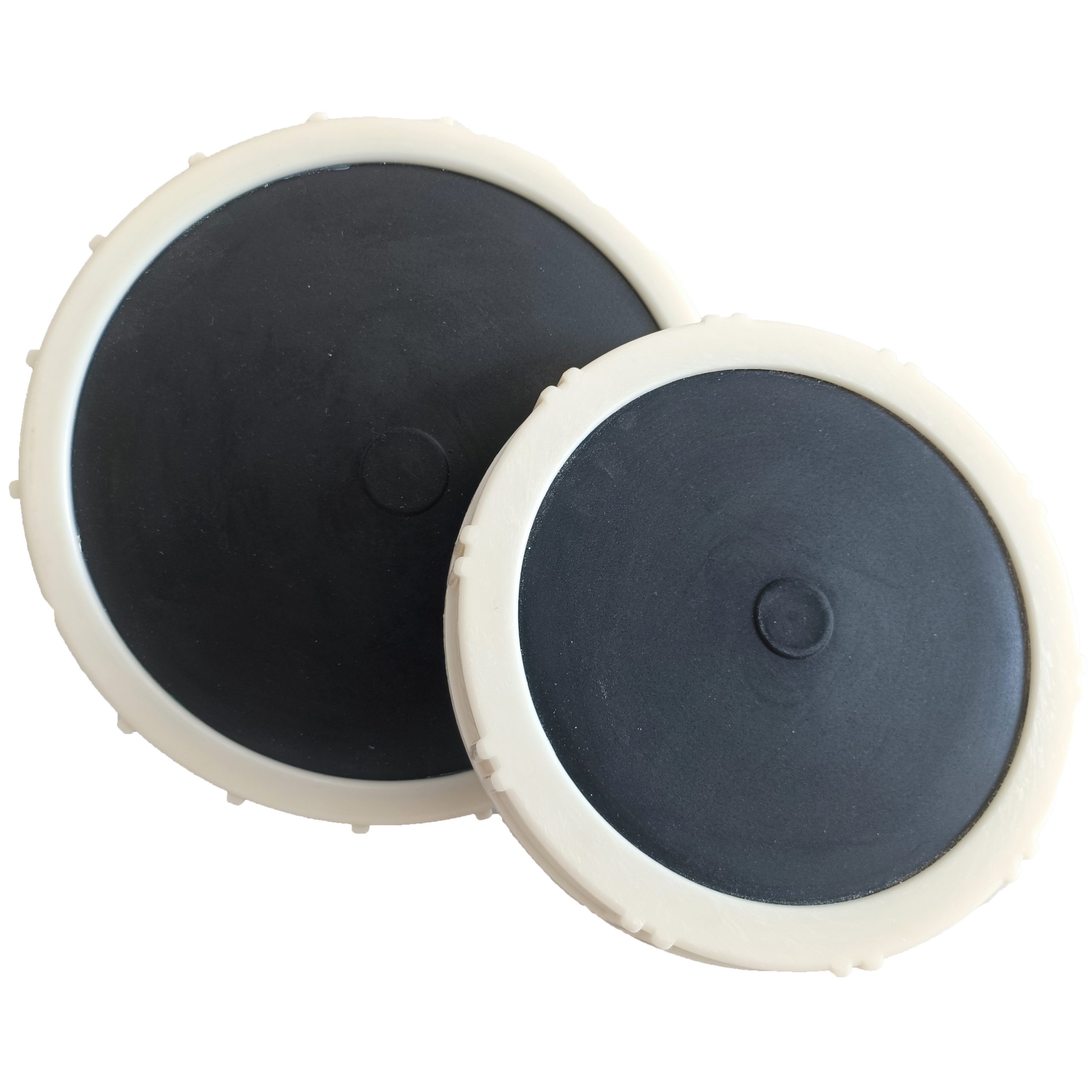

| Model | 215mm | 260mm | 330mm |
| Size | 8 inch | 9 inch | 12inch |
| Bubble Type | Fine bubble diffuser | Fine bubble diffuser | Fine bubble diffuser |
| Material | EPDM/Silicon membrane | EPDM/Silicon membrane | EPDM/Silicon membrane |
| Bubble Size | 1-2mm | 1-2mm | 1-2mm |
| Flow Range | 1-6m³/h | 1-8m³/h | 1-10m3/h |
| Slit Quantity | 5000 | 8900 | 10000 |
| Service Area | 0.2-0.64m² | 0.25-1.0m² | 0.3-1.2m2 |
| Service Life | >5 year | >5 year | >5 year |
Application of fine bubble diffuser :
1.Municipal wastewater treatment;
2.Industrial wastewater treatment;
3. Clean water treatment;Sludge stabilization;
4. Wastewater ozone diffusion;
5. Aeration of fish ponds;
6. Aeration of streams and lakes.
1.Aeration of fishpond and other applications
2.Aeration of deep aeration basin
3.Aeration for excreta and animal wastewater treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration wastewater aeration basin,and aeration for regulating pond of wastewater treatment plant
6.Aeration for MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
